A quick review of the previous tutorial (COMMON TIMER/COUNTER THEORY). The clock source (from the internal clock or an external source) sends pulses to the prescaler which divides the pulses by a determined amount. This input is sent to the control circuit which increments the TCNTn register. When the register hits its TOP value it resets to 0 and sends a TOVn (timer overflow) signal which could be used to trigger an interrupt.

Unfortunately, the AVR timer does process time in hours, minutes or seconds (what we are used to). However, being evil masterminds we have the solution, it just requires a bit of math and our old friend, the prescaler.

OCRn = [ (clock_speed / Prescaler_value) * Desired_time_in_Seconds ] - 1

Now for the bad news OCRn has to be a whole number. If you end up with a decimal number it means that your desired timer will not be exact. The other thing is that your number has to be able to fit into the register. So 255 for a 8bit timers and 65535 for the 16bit timer.

Normal Mode:

When the prescaler receives a pulse from a clock cycle and passes it onto the Control Logic. The Control Logic increments the TCNTn register by 1. When TCNTn hits the TOP (0xFF in the 8 bit timers and 0xFFFF in the 16 bit timer) it overflows to 0 and sets the TOVn bit in the TIFR register.

The problem with Normal Mode is that it is very hard to use for an exact interval, because of this Normal Mode is only useful if you need a none-specific time interval (say you don't care if it happens every 1 or 2 ms as long as it happens at the same time each time) its nice and easy option. Because, of this limitation many programmers choose to use CTC mode for their timers.

CTC Mode:

CTC stands for "Clear Timer on Compare" and it does the following. When the prescaler receives a pulse from a clock cycle and passes it onto the Control Logic. The Control Logic increments the TCTn register by 1. The TCNTn register is compared to the OCRn register, when a compare match occurs the TOVn bit is set in the TIFR register.

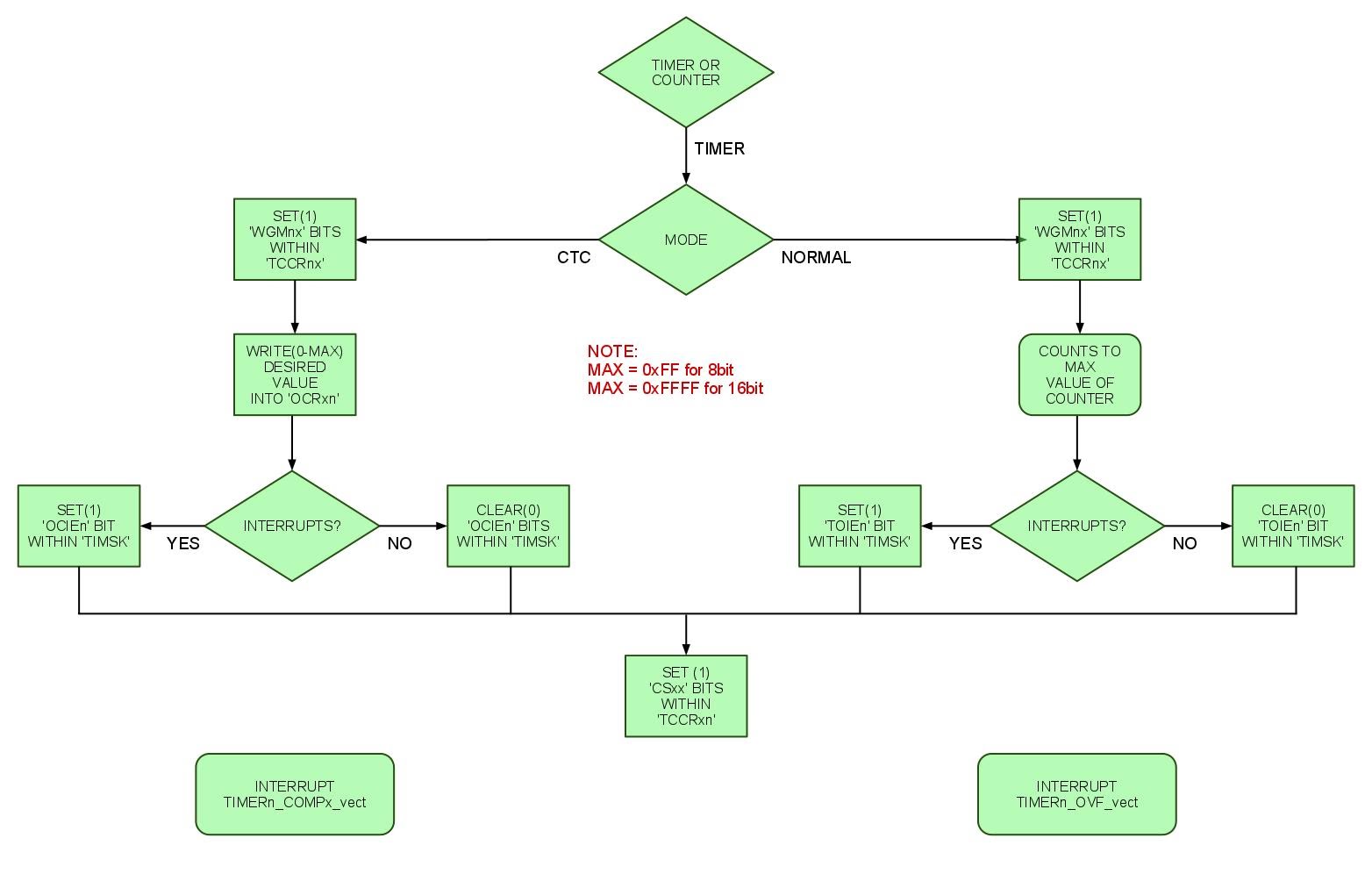

Flow 1: Activating The Timer

The flow diagram above describes how to activate the timer. More details below.

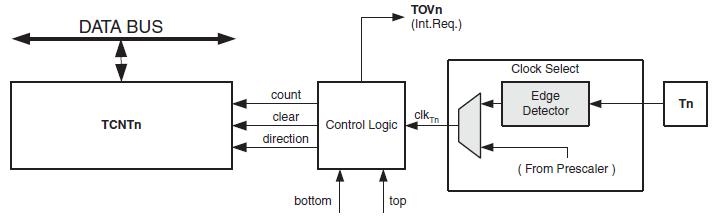

Figure 1: Timer0 on the ATmega168/328

Unlike the ATmega8 the ATmega168/328's Timer0 does have a OCR0 register therefore it is capable of running in normal and CTC mode.

TOV0 can generate a Timer Overflow interrupt. In order to activate the timer0 interrupts you need to SET(1) the TOIE0 bit within the TIMSK register.

Timer/Counter Control Register 0 A

Timer/Counter Control Register 0 B

Waveform Generator Mode bits

CS bits Settings

Timer/Counter Interrupt Mask Register

Timer/Counter Interrupt Flag Register

Timer/Counter Register (stores the counter value)

Output Compare Register

Software:

ATmega168/328 Code:

    // this code sets up a timer0 for 1ms @ 16Mhz clock cycle
    // in order to function as a time delay at the begining of the main loop
    // using no interrupts

    #include <avr/io.h>

    int main(void)
    {

        while (1)
        {
            // Set the Timer Mode to CTC
            TCCR0A |= (1 << WGM01);

            // Set the value that you want to count to
            OCR0A = 0xF9;

            // start the timer
            TCCR0B |= (1 << CS01) | (1 << CS00);
            // set prescaler to 64 and start the timer

            while ( (TIFR0 & (1 << TOV0) ) > 0)        // wait for the overflow event
            {
            }

            TIFR0 |= (1 << TOV0);
            // reset the overflow flag
        }
    }

ATmega168/328 Code:

    // this code sets up a timer0 for 4ms @ 16Mhz clock cycle
    // an interrupt is triggered each time the interval occurs.

    #include <avr/io.h>
    #include <avr/interrupt.h>

    int main(void)
    {
        // Set the Timer Mode to CTC
        TCCR0A |= (1 << WGM01);

        // Set the value that you want to count to
        OCR0A = 0xF9;

        TIMSK0 |= (1 << OCIE0A);    // Set the ISR COMPA vect

        sei();         // enable interrupts

        TCCR0B |= (1 << CS02);
        // set prescaler to 256 and start the timer

        while (1)
        {
            // main loop
        }
    }

    ISR (TIMER0_COMPA_vect)  // timer0 overflow interrupt
    {
        // event to be exicuted every 4ms here
    }

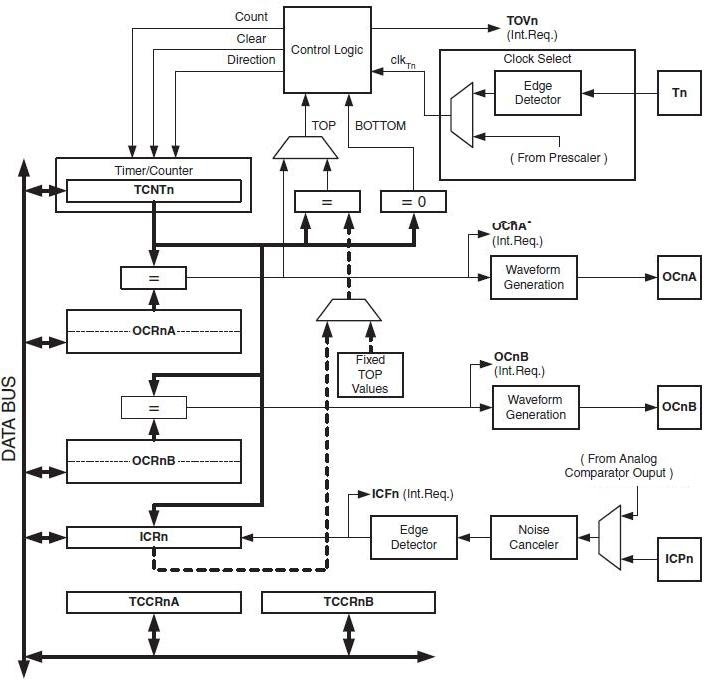

Figure 2: Timer1 on the ATmega168/328

Timer/Counter1 is the big daddy of timers. It can run in Normal mode (0xFFFF) and 2 CTC modes. The difference between the 2 CTC modes that mode 4 uses the OCR1A register for its compare value and mode 12 uses the ICR1 register.

In normal mode TOV1 can generate a Overflow interrupt. In order to activate the timer1 overflow interrupts you need to SET(1) the TOIE1 bit within the TIMSK register.

In CTC (mode 4) mode OCIF1A can generate an interrupt when it detects a compare match. In order to activate the timer1 CTC interrupt SET(1) the OCF1A bit within the TIMSK register.

In CTC (mode 12) mode TICIE1 can generate an interrupt when it detects a compare match. In order to activate the timer1 CTC interrupt SET(1) the TICIE1 bit within the TIMSK register.

Timer/Counter Control Register 1 A

Timer/Counter Control Register 1 B

Waveform Generator Mode bits

CS bits Settings

Timer/Counter Control Register 1 C

Timer/Counter Interrupt Mask Register

Timer/Counter Interrupt Flag Register

Timer/Counter Register (stores the counter value, 16 bit)

Output Compare Register A (stores the compare value, 16 bit)

Input Compare Register (can be used to stores the compare value, 16 bit)

Software:

ATmega168/328 Code:

    // this code sets up timer1 for a 1s  @ 16Mhz Clock (mode 4)

    #include <avr/io.h>
    #include <avr/interrupt.h>

    int main(void)
    {
        OCR1A = 0x3D08;

        TCCR1B |= (1 << WGM12);
        // Mode 4, CTC on OCR1A

        TIMSK1 |= (1 << OCIE1A);
        // Set interrupt on compare match

        TCCR1B |= (1 << CS12) | (1 << CS10);
        // set prescaler to 1024 and start the timer

        sei();
        // enable interrupts

        while (1)
        {
            // we have a working Timer
        }
    }

    ISR (TIMER1_COMPA_vect)
    {
        // action to be done every 1 sec
    }

ATmega168/328 Code:

    // this code sets up timer1 for a 200ms  @ 16Mhz Clock (Mode 12)

    #include <avr/io.h>
    #include <avr/interrupt.h>

    int main(void)
    {
        ICR1 = 0x30D3;

        TCCR1B |= (1 << WGM12);
        // Mode 4, CTC on OCR1A

        TIMSK1 |= (1 << ICIE1);
        // Set interrupt on compare match

        TCCR1B |= (1 << CS12);
        // set prescaler to 256 and starts the timer

        sei();
        // enable interrupts

        while (1)
        {
            // we have a working Timer
        }
    }

    ISR (TIMER1_COMPA_vect)
    {
        // action to be done every 200ms
    }

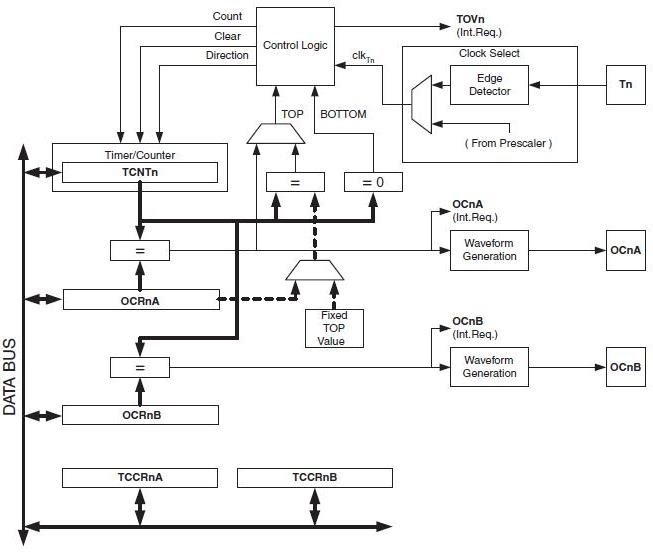

Figure 3: Timer2 on the ATmega168/328

Timer/Counter2 is the preferred timer among programmers for short time delays because, its prescaler has the greatest number of options . It can run in Normal mode or CTC modes.

In normal mode TOV2 can generate a Overflow interrupt. In order to activate the timer1 overflow interrupts you need to SET(1) the TOIE1 bit within the TIMSK2 register.

In CTC mode OCIF2 can generate an interrupt when it detects a compare match. In order to activate the timer1 CTC interrupt SET(1) the OCF2 bit within the TIMSK register.

Timer/Counter Control Register 2

Waveform Generator Mode bits

Timer/Counter Control Register 2

CS bits Settings

Timer/Counter Interrupt Mask Register 2

Timer/Counter Interrupt Flag Register 2

Timer/Counter Register 2 (stores the counter value)

Output Compare Register 2 (stores the compare value)

Software:

ATmega168/328 Code:

    // this code sets up timer2 for a 250us  @ 16Mhz Clock

    #include <avr/io.h>
    #include <avr/interrupt.h>

    int main(void)
    {
        OCR2A = 62;

        TCCR2A |= (1 << WGM21);
        // Set to CTC Mode

        TIMSK2 |= (1 << OCIE2A);
        // Set interrupt on compare match

        TCCR2B |= (1 << CS21);
        // set prescaler to 64 and starts PWM

        sei();
        // enable interrupts

        while (1)
        {
            // Main loop
        }
    }

    ISR (TIMER2_COMPA_vect)
    {
        // action to be done every 250 usec
    }
